BQ41F BQ41PPL Jacketed Ball Valve Model Meaning
BQ41F BQ41PPL Jacketed Ball Valveis a standard industrial valve model code representing full-jacketed soft seal ball valve:
B: Jacketed / Thermal insulation type
Q: Ball Valve
4: Flange connection
1: Floating ball, straight-through two-way flow
F/PPL: PTFE/RPTFE or PPL fluorine plastic soft seal
BQ41F BQ41PPL Jacketed Ball Valve Structural Features

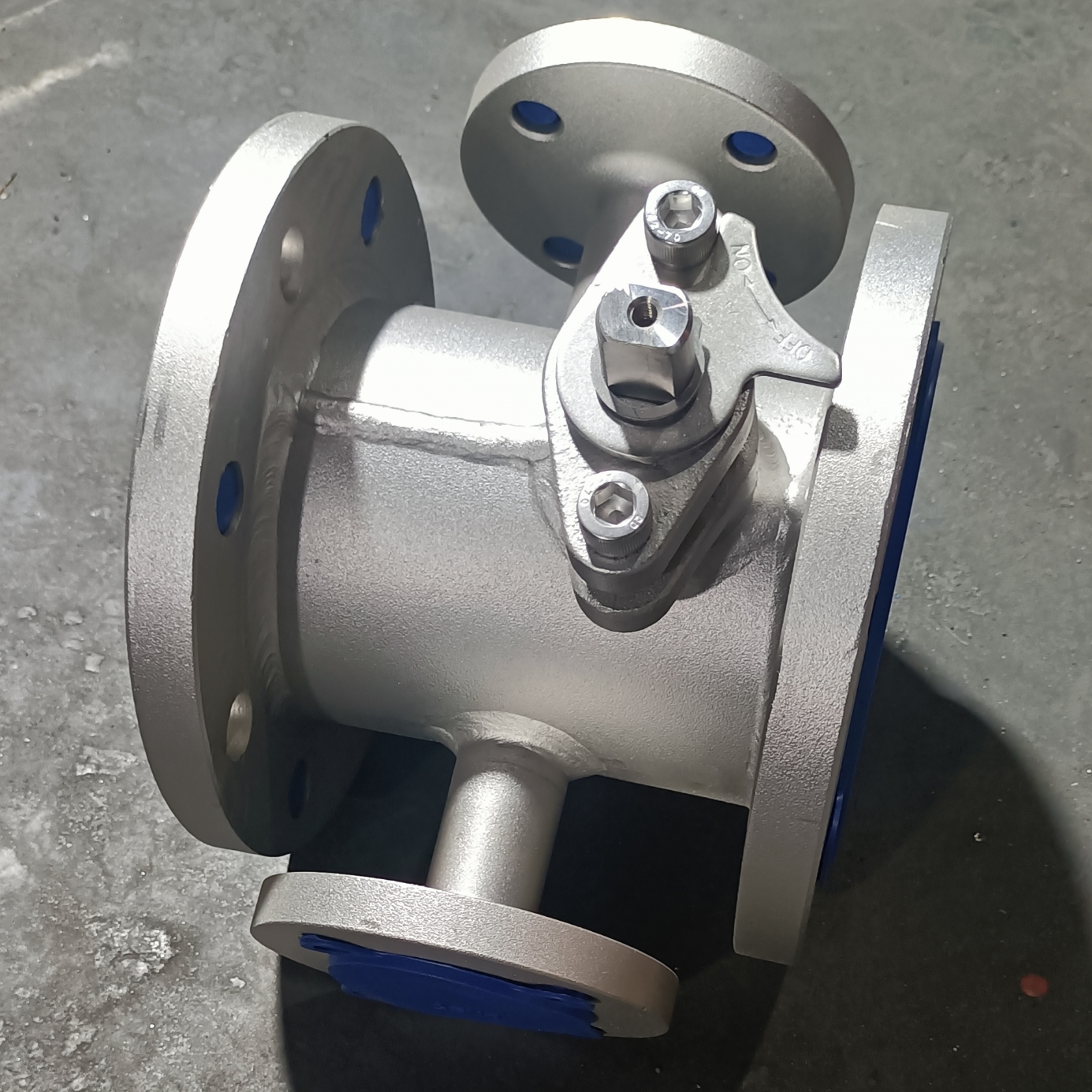

BQ41F BQ41PPL Jacketed Ball Valve adopts an integral welded jacket structure that fully covers the valve body and flange channel without dead cooling zones. All jacket welds are precisely processed and tested to ensure no leakage of heating medium. BQ41F BQ41PPL Jacketed Ball Valveuses a floating ball design, which can automatically compensate sealing pressure according to pipeline medium pressure to achieve tighter sealing effect.
Different from hard-seal jacketed valves, BQ41F BQ41PPL Jacketed Ball Valve is equipped with high-performance modified PTFE seats. The soft seal material perfectly fits the finely ground ball surface, delivering bubble-tight shut-off, low switching torque and excellent corrosion resistance. The straight-through flow channel offers minimal flow resistance and avoids medium retention, greatly reducing crystallization and scaling risks.
BQ41F BQ41PPL Jacketed Ball Valve Working Principle
During operation, heating medium such as saturated steam or thermal oil circulates inside the outer jacket, providing continuous and uniform heat transfer to the valve body and internal process medium. This constant-temperature working environment keeps viscous and easily solidified media fluid and stable, preventing pipeline blockage and valve jamming caused by temperature drop.
The floating ball and soft-seat combination ensures flexible sealing compensation during thermal expansion and contraction. Even under long-term cyclic switching, the valve maintains stable zero-leakage performance for clean liquid and gas media.
BQ41F BQ41PPL Jacketed Ball Valve Key Advantages
1.Zero Leakage Performance: PTFE/PPL soft seal achieves bubble-tight shut-off, ideal for clean medium pipelines requiring strict sealing standards.
2.Low Operation Torque: Soft-seal friction is small, enabling easy manual operation and lower load for electric or pneumatic actuators.
3.Excellent Corrosion Resistance: PTFE/PPL material resists most acids, alkalis and organic solvents, suitable for various corrosive clean media.
4.Reliable Thermal Insulation: Full-wrap welded jacket ensures uniform heating and completely prevents medium solidification and crystallization.
5.Cost-Effective: Stable performance, low maintenance cost and long service life for conventional heat-preservation working conditions.
BQ41F BQ41PPL Jacketed Ball Valve Technical Specifications
Nominal Size: DN15–DN200
Pressure Rating: PN16, PN25, PN40
Body Material: WCB Carbon Steel, 304, 316L Stainless Steel
Sealing Material: PTFE / RPTFE/PPL
Temperature Range: -20℃ ~ 200℃
Jacket Medium: Steam, hot water, thermal oil
Operation: Manual, worm gear, pneumatic, electric
Connection: Flange
Bore Type: Full bore / Reduced bore
BQ41F BQ41PPL Jacketed Ball Valve Applications
BQ41F BQ41PPL Jacketed Ball Valve is widely used for clean, non-abrasive, temperature-sensitive viscous media. Typical industries include food and beverage, pharmaceutical, daily chemical, fine chemical, resin and latex delivery systems. It is especially suitable for media that easily crystallize or solidify at room temperature, providing stable thermal insulation and reliable fluid control for industrial production pipelines.
BQ41F BQ41PPL Jacketed Ball Valve Manufacturing Standards
BQ41F BQ41PPL Jacketed Ball Valve is designed and manufactured in accordance with GB/T 12224, ASME B16.34 and API 6D standards. All valves pass strict shell pressure test, seat sealing test and jacket tightness test before delivery to ensure safe, stable and long-term industrial operation.
