1. The flow passage forms a 120 degree switch or 135 degree switch, with smooth flow passage, small resistance and strong flow capacity.
2. According to the actual working conditions, the ball center and the seat seal can be respectively used soft seal, spray welding nickel base alloy (hardness greater than HRC60), supersonic tungsten-cobalt alloy (hardness greater than HRC70) and special hardening materials and other advanced technologies.
3. Soft seal temperature: 250 ° C.
4. Hard sealed carbon steel not exceeding 425 ° C and stainless steel not exceeding 450 ° C.
Nominal diameter: DN50-300,2’’-12’’
Material of valve body: WCB, 304, 316 or others
Connection: Flange type
Pressure class: PN1.6-4.0Mpa,150LB-600B
Structure: Y 120 degrees, Y 135 degrees
Seat seal: PTFE: -30℃ ~ 180℃
PPL: -30℃ ~ 220℃
Hard seal: -30℃ ~ 450℃ Cemented carbide: surface spray welding, tungsten nitride
Ball material: 304, 316, 316;The surface of hard sealed ball core is spray welding and tungsten nitride
Ball valve stem material: 304
Ball valve applicable medium: powder, liquid water, gas, etc
No retention of medium
Leakage: Zero leakage

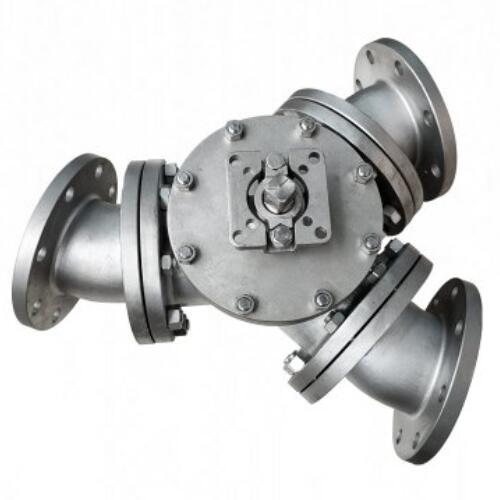

The Three way Y type ball valve features a compact overall structure, reasonable layout and convenient disassembly and maintenance. It consists of six core parts: valve body assembly, ball core, valve stem transmission assembly, sealing assembly, driving actuator and packing sealing assembly. With high structural stability, strong resistance to pressure fluctuation and jamming-free opening and closing, it is suitable for long-term continuous automatic operation.
1 Valve Body Structure
The Three way Y type ball valve body is formed by integral forging or precision casting. Optional materials include WCB carbon steel, 304 stainless steel, 316L stainless steel, duplex steel and more, adapting to normal temperature, high temperature, low temperature, slight corrosion and other working conditions. Adopting an integrated Y-type three-way layout, the valve body has a smooth inner flow passage without concave and convex dead corners, effectively reducing fluid scouring wear and medium adhesion accumulation. It supports multiple connection modes such as flange, thread and welding, meeting the installation requirements of various industrial pipelines with strong universality. The mainstream structures are top-mounted and side-mounted. The top-mounted structure allows on-line maintenance of internal parts without pipeline disassembly, offering higher operation and maintenance convenience.
2 Ball Body and Flow Passage Design
As the core control component, the ball body adopts a solid precision ball structure with high strength, excellent impact resistance and non-deformation performance. The internal flow passages strictly correspond to the Y-type angle of the valve body, divided into two mainstream types: 120° equal flow passage and 135° inclined flow passage. The 120° structure is suitable for equal three-way flow diversion and confluence working conditions with uniform and stable flow distribution. The 135° structure focuses on straight-through large-flow conveying and bypass switching, with straight-through flow resistance close to that of straight-through ball valves, which is more suitable for main pipeline large-flow and bypass fine switching scenarios. The ball flow passage is precisely polished with large flow coefficient and low pressure loss, delivering far higher medium conveying efficiency than traditional three-way valves.
3 Sealing System Design
The Three way Y type ball valve supports dual soft and hard sealing systems, fully covering high and low temperature, high and low pressure, clean and particle-containing medium working conditions. The soft seal adopts enhanced PTFE and polyphenylene sulfide sealing materials, featuring good sealing toughness and high fitting accuracy, realizing zero leakage under normal temperature and adapting to clean water, gas, oil products, clean chemical media and other particle-free clean media. The hard seal adopts Stellite alloy surfacing and supersonic tungsten-cobalt alloy spraying on the ball surface, with the sealing surface hardness reaching above HRC60. It is resistant to scouring, high temperature and wear, capable of withstanding high temperature, high pressure and micro-particle media, with long-term stable sealing performance without attenuation.
4 Valve Stem and Anti-Leakage Structure
The three way Y type ball valve stem adopts an integral forged stainless steel structure, featuring high strength, torsion resistance and corrosion resistance, with no offset or fracture risk during opening and closing. The valve stem packing area adopts a multi-layer flexible packing and external leakage prevention sealing design, matched with thrust gaskets and dustproof structures, which effectively prevents medium leakage and dust intrusion, improves the sealing performance and service life of the valve, and adapts to automatic operation scenarios with frequent opening and closing.
1. Pneumatic Three way Y type ball valve
Pneumatic Y type ball valve pneumatic actuators according to the action type divided into single action and double action two types, the single action type is characterized by once the power source failure, the ball valve will be in the control system requirements of the state. double functions: ventilation on, ventilation off, air source fault to maintain the current position,which can install reversing solenoid valve, limit switch, air filter, positioner, handwheel mechanism, position protection valve accessories according to client’s requirement.
Pneumatic Three way Y type ball valve Pneumatic actuator function:
Double action: ventilation on, ventilation off, air source fault to maintain the current position
Single - operation air - off: air - on, air - off, air - source fault - off
Single - operation air - off: air - off, air - break - off, air - source fault - open
Optional accessories: reversing solenoid valve, limit switch, air filter, positioner, handwheel mechanism, position protection valve
The Pneumatic ball valve electrical part can be selected for explosion protection
2. ELectric Three way Y type ball valve
Electric Y type ball valve is composed of 120 degree or 135 degree Y type ball valve and electric actuator with 220V,380V or other voltage for turn the flow direction in the industrial system according to client requirement.
Electric Three way Y type ball valve Electric actuator function：
Switch type: feedback signal: passive contact signal \4-20mA\ resistance signal
Adjustable type: input 4-20mA\0-10V\1-5V;Feedback signal: 4-20MA \0-10V\1-5V
Voltage: AC220V\380V\110V\24V, DC12V\24V, etc.Special voltages can be customized
Explosion-proof grade: optional EXdIIBT4
Electric ball valve IP Class:IP67
3. 120 degree Three way Y type ball valve
The three channels of y type ball valve are designed to be included at an Angle of 120°each other, which can realize two different flow direction switching through the rotation of the ball between 120°.120 degree Y type ball valve includes the body, which is equipped with a sphere and has three port flow channel, the ball is equipped with open at both ends of the connection channel, the body of the import and export any move with the sphere's turn with connection channel conduction or closed, connecting channel any radial plane is and the port diameter and circle, the ends of the connection channel opening radial cross section method to the Angle is 120 °, fluid channel is equipped with three of the seat, seat hole structure of port, the seat toward one end of the sphere and sphere has a compact between the outer surface of blocks,The side of the pressing block toward the ball is provided with a contact surface matched with the surface of the outside circumference of the ball, and the other side of the pressing block is provided with an internal sealing structure between the seat.The 120 degree Y type 3 way ball valve can realize two different flow direction switch, and the sealing structure is firm and durable, long service life, small fluid flow resistance, easy to clean the tee pipe.
4. Three way 135 degree Y type ball valve
135 degree Y type 3 way ball valve with Y type port form, the seat for the three sides of the seat, with each other to 135 ° body structure, switch to the flow direction of medium according to the need to implement two kinds of working conditions.135 degree Y type 3 way ball valve installation of various forms, according to the layout of the pipeline to choose different shapes for installation, smooth flow passage, small fluid resistance, strong flow capacity, will not make the medium stop in the flow passage, the realization of the pipeline can be very good, very smooth switch, will not cause secondary pollution.It can be matched with electric actuators and pneumatic actuators for automatic control.135 degree Y type 3 way ball valve according to the need to achieve the medium flow direction switch, can be perpendicular to the two channels tee ball valve flow resistance is smaller.135 degree Y type 3 way ball valve seat seal according to the different working conditions, the sealing surface can be used PTFE (180 ℃) , PPL (220 ℃) , or hard alloy (450 ℃) , spray welding of nickel base alloy (hardness to HRC60), supersonic coated tungsten cobalt alloy (hardness greater than HRC70) and special hardening material and a variety of advanced materials, the process of 135 degree Y type 3 way ball valve structure is compact, easy to operation and maintenance, suitable for water, solvents, and working medium, such as acid, can satisfy different working conditions.Suitable for all kinds of harsh working conditions, soft seal is suitable for less than 200℃ working conditions, hard seal carbon steel does not exceed 425℃.
Application: 135 degree Y type 3 way ball valve according to different working condition, can use soft seal, spray welding of nickel base alloy (hardness greater than HRC60), supersonic coated tungsten cobalt alloy (hardness greater than HRC70) and special hard materials, and other advanced technology, applicable to all kinds of harsh conditions, soft sealing applicable under 220 ℃ condition, hard seal carbon steel does not exceed 425 ℃, stainless steel does not exceed 450 ℃.135 degree Y type 3 way ball valve is widely used in petroleum, chemical industry, power generation, papermaking, hydraulic oil, construction machinery and other industries
1 Installation Specifications
Thoroughly clean welding slag, impurities and dust inside the pipeline before installation to prevent hard particles from scratching the sealing surface and ball flow passage. Install the valve strictly in accordance with the medium flow direction mark on the Three way Y type ball valve body; it supports multi-angle installation including horizontal and vertical without direction limitation. Tighten flange bolts evenly to ensure uniform fitting of the sealing surface and avoid leakage caused by offset pressure. After the installation of automatic valves, conduct no-load commissioning of opening, closing and switching actions to confirm jamming-free and accurate switching before formal operation.
2 Operation Requirements
Perform opening, closing and reversing operations gently and uniformly; violent sudden opening and closing is prohibited to reduce instantaneous fluid impact loss on the sealing structure. Overpressure, overtemperature and over-rated working condition operation is forbidden to prevent component deformation and sealing failure. Regularly flush the pipeline when conveying easily crystallized, viscous and powder media to avoid micro-residue accumulation. Calibrate the opening accuracy of automatic valves regularly to ensure precise diversion and regulation.
3 Daily Maintenance
3 way Y type ball valve features low failure rate and simple maintenance. Daily inspection only needs to check the valve body sealing state, driving mechanism operation condition, wiring and air source stability. For long-term idle equipment, perform reciprocating no-load opening and closing before restarting to clean internal micro-residues. Regularly inspect the aging state of sealing parts for soft-seal valves and the wear state of sealing surfaces for hard-seal valves. Unauthorized disassembly of precision sealing components is prohibited to avoid reduced fitting accuracy and sealing performance attenuation. The overall maintenance workload is small, suitable for long-term unattended continuous industrial operation.
